Place of Origin : Guangdong, China
Brand Name : VKNTECH
Certification : IATF16949/ISO9000
Packaging Details : CARTON/PALLET
Supply Ability : 2000000pcs/Year
MOQ : 20 Pieces
Price : $1.00 - $45.00/Pieces
Model Number : 1K9541
OE NO. : W01-358-9541
Warranty : 12 Months
Type : by sea / by air / by truck
Car Model : For bus/truck&trailer
Price condition : FOB China
Sample : Available
Material : Imported Natrul Rubber
Operation : Gas-filled
Brand : VKNTECH or customized
Service offered : OEM
Suspension system : Air Spring Suspension
Type of Goods : Air Spring/Air bags/Air Ballons
Package : Standard packing or customized
Payment term : T/T&L/C
Port : Guangzhou

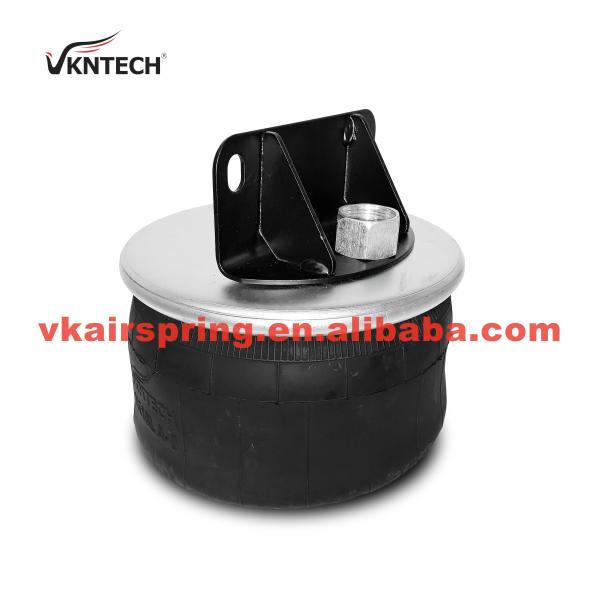

AS9541 Natural Rubber Air Spring/W01-358-9541 Air Suspension Spring For OEM Piston Steel 1DK20H-9541 Air Bags
OEM
| Firestone | W01-358-9541 | FLEETPRIDE | AS9541 | |
| TRIANGLE | AS-8861 | TRP | AS95410 | |
| AUTOMANN | 1DK20H-9541 | |||
| KENWORTH | C81-1005 |
Product Drawing

Specification
| Air Spring Air Fitting Size | Air Inlet 1 5/16-12 UNF |
| Air Spring Compressed Height | 3.90 in. |
| Air Spring # of Lobes | 1 Solid Sleeve |
| Air Spring Type | 1T - Reversible Sleeve |
| Bead Plate (Top) & Deflated Bellows O.D. | 9 and 9.12 in. |
| Bead Plate (Top) Mounting Bolts Dimension Center to Center | 2.25 in. |
| Diameter | 9.12 in. |
| Extended Height Deflated | 12.00 in. |
| Finished Weight | 11.0 lbs |
| Piston Height | 2.8 in. |
| Bead Plate Top Diameter | 9 in. |
| Bead Plate Bottom Diameter | 8.18 in. |
| Application | Airglide 690 |
| Assembled Product Weight (lb) | 11.5 |
| Bellows | 1T15LA-0 |
| Bottom Bead Plate Hardware Key | Bold or Stud 1/2-13 |
| Design Height (in.) | 6月7日 |
| Loading Capacity at 20 psig | 1,320 lbsf |
| Loading Capacity at 60 psig | 3,960 lbsf |
| Loading Capacity at 90 psig | 5,940 lbsf |
| Maximum Diameter | 11.7 |
| Maximum Rebound Height (in.) | 11.5 |
| Minimum Jounce Height (in.) | 3.75 |
| Natural Frequency | Hz |
| Operating Temperature (Deg C) | 57 to -54 |
Product Description
Spring Pro Bellow Number: 889541
Goodyear Bellows Number: n/a
Goodyear Part Number: n/a
Firestone Bellows Number: 1T15LA-0 or 1T15KW-0
Firestone Part Number: W01-358-9541
Replaces: Kenworth C81-1005, Airglide 200 05/05/03 or later, Airglide 460, Airglide 690
Cross References: C811005, 66111, C81-1005, 9 9-10 S 861, 99-10S861, 9910S861, W01-358-9541, W013589541, 9547, W013589547, W01-358-9547, C811004, C81-1004
A cross reference listing means that this air bag may be a suitable replacement for the part numbers listed. Please double check the dimensions and location of mounting holes and stud to be sure the air bag will work in your application.
|
|
